Dierya 63 Dual Mode Keyboard Kit
Pls pay attention: Keyboard Kit only, you need to solder switches by yourself, and this keyboard kit only supports 3pin SMD switches.

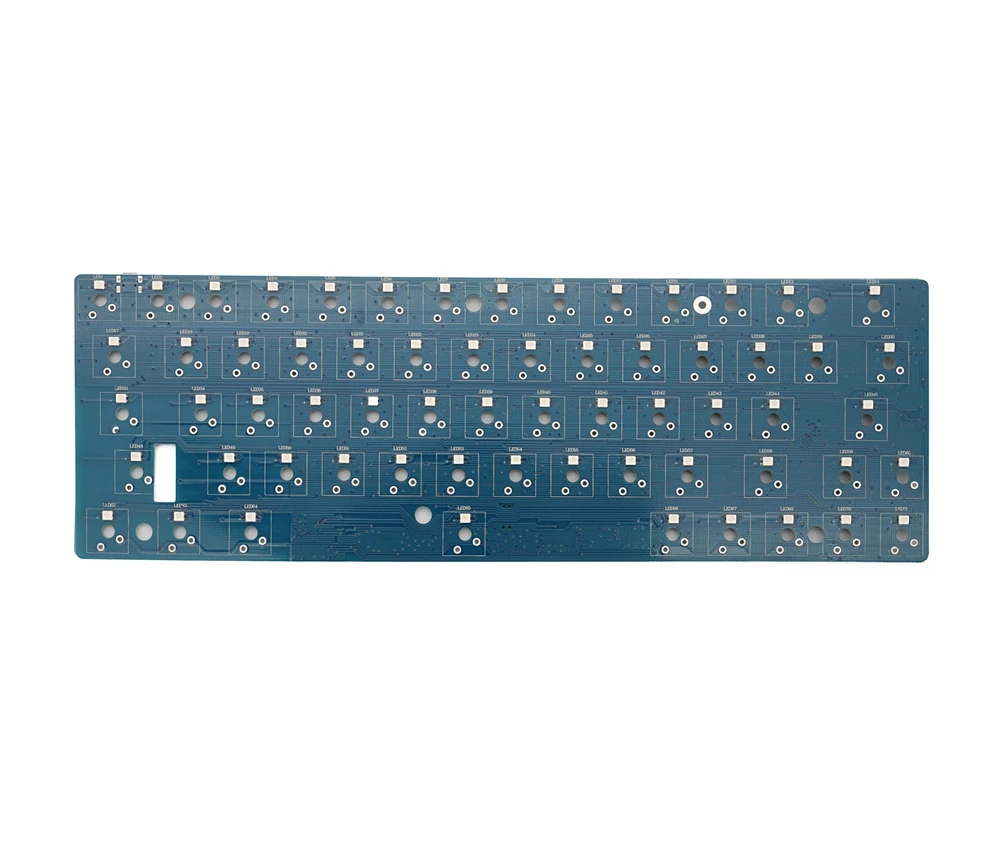

Dierya 63 RGB PCB SPEC
- *32 bit MCU
- *Built-in 8M Flash
- *Dual Mode, support Bluetooth 4.0 wireless mode
- *3 256*256*256LED driver chip supports 16.8Million colours LED, support kinds of led effect.
- *Type-C USB cable or Micro USB cable.
- *Li-Battery inside(1500mAh)
Connection with Device: Make sure bottom Battery button is on, press Fn+Q, W or E for 3s, open BT mode, then you can find Dierya on your PC or smartphone. After the first successful connection, next time, you can press fn+ Q W or E to a quick connection with your device.
Changing Cable mode and Bluetooth mode: press Fn+R
- Fn+Arrow Key=Light Speed and brightness
- Fn+?=Led Effect Mode Changing
- Fn+Spacebar=Led Effect Pause Mode
- Fn+L Ctrl=Change Capslock and L Ctrl
- Fn+Win=Win Lock

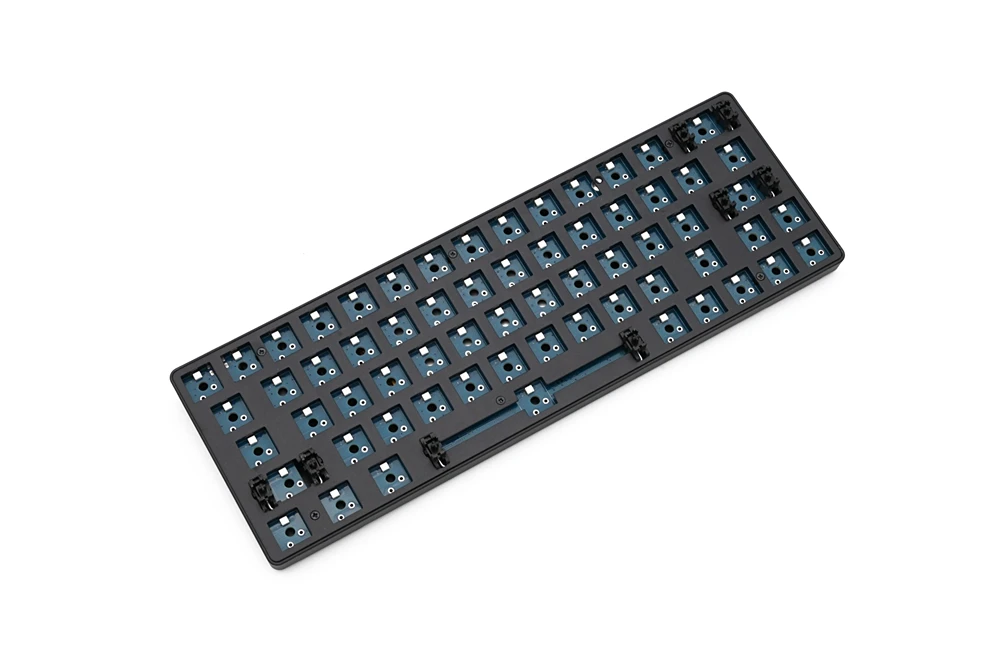

Before using, make sure you have soldered button and Electronic Components like the following picture:
