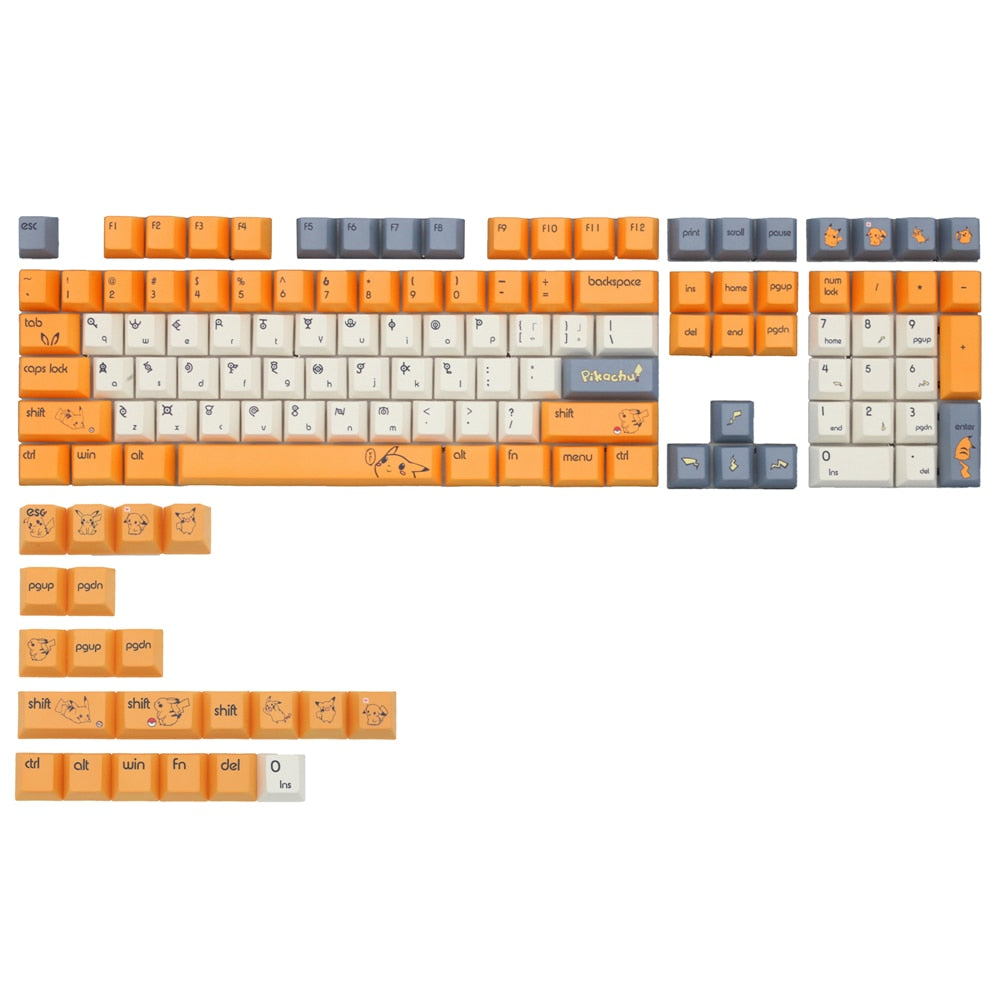

OMO PikaPika All Over Dye-Sub Keycap Set
SPECS
-
Loop
-
Material: PBT (About 1.4 mm)
-
Dye-subbed legends(all over dye subbed keycap)
-
Cherry profile (1-1-2-3-4-4)
-
Compatible with Cherry MX switches and clones

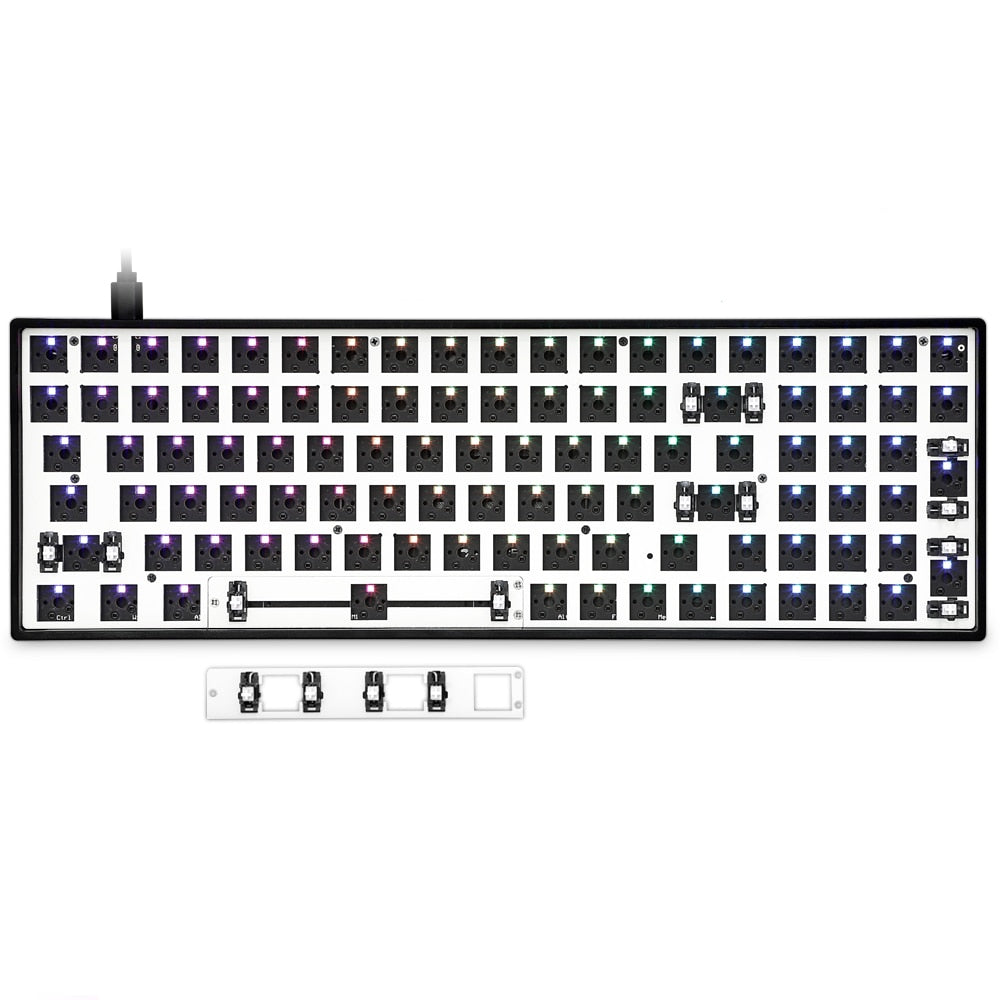

GK96X HOT SWAPPABLE CUSTOM MECHANICAL KEYBOARD
EG Aqua Switch
SPECS
-
Everglide
-
Switch housing material: Polycarbonate
-
Stem material: Polycarbonate
-
Maximum switching voltage: 12 V AC/DC
-
Maximum switching current: 10 mA AC/DC
-
Dielectric strength: 500 V / 50Hz
-
Lifespan: > 50 million actuations
-
Contact configuration: Single-pole contact
-
Pretravel: 2.0 (± 0.6 mm)
-
Total travel: 4 mm (± 0.3 mm)
-
Actuation force: 55 gf, 62 gf, or 67 gf (± 10 gf)
-
Operating force: 15 gf
-
Bounce time: < 5 ms (during actuation with 0.4 m/s)
-
Spring: Stainless steel (with a gold-plate）
-
Contacts: Gold alloy
-
Storage Temperature: 41°F – 104°F (5°C – 40°C)
-
Operating Temperature: -40°F – 158°F (-40°C – 70°C)
