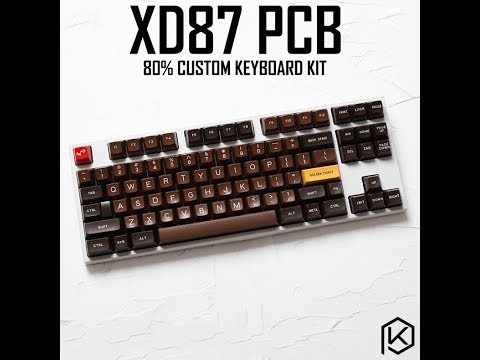

XD87 Custom Mechanical Keyboard Kit 80% Supports TKG-TOOLS Underglow RGB

XD87 Custom Mechanical Keyboard Kit 80% Supports TKG-TOOLS Underglow RGB

$36.90 $36.90

Add to Cart

XD87 Custom Keyboard Kit

NOTE - Before soldering switches, please test all keys (use tweezers or iron wire) and LEDs(If PCB can or not support 2pin single colour led or RGB led) to make sure all functions work properly. BEFORE  soldering, if the PCB has any key problems, we can re-ship a new one. AFTER soldering, we are sorry that we can't re-ship any replacements. However, we are able to help you to repair it (buyer needs to pay for the returning shipping fee). If you order our products, we assume that you agree with the above terms.

Kit1=XD87 PCB+Black Plastic Case+Stainless steel plate

Kit2=XD87 PCB+White Plastic Case +Stainless steel plate

Kit3= XD87 PCB+Black Plastic Case+PCB Stabilizer  +Stainless steel plate

Kit4= XD87 PCB+White Plastic Case+PCB Stabilizer  +Stainless steel plate

Kit5=XD87 PCB +Plastic Case ( pls mark with Black or White)+ Stainless steel plate+90 Gateron Switches (Pls mark with switches type and 3pin or 5pin)

Kit6= XD87 PCB +Plastic Case (pls mark with Black or White) + Stainless steel plate+90 Gateron Switches(Pls mark with switches type and 3pin or 5pin)+90 2pin LEDs (Pls mark colour )

Kit7= XD87 PCB +Plastic Case(pls mark with Black or White)+ Stainless steel plate+90 Gateron Switches (Pls mark with switches type and 3pin or 5pin)+90 2pin LEDs (Pls mark colour )+Type C Coiled Cable( Pls mark color from black/grey/white )



Pls pay attention:

  • XD87 only, not including other things, especially not including any keycaps at this link.
  • Stabilisers needed when you choose Kit5-kit7, purchase from here
  • The plate in the kit doesn't support ALPs switch



HOW TO PUT XD87 into ITS CASE

.

PCB Specification

1\80%
2\Can support MX Switch or ALPS Switch
3\Compatible with KLE custom key
4\Supports TKG-TOOLS offline and TKG online flash
5\Standard ICSP interface
6\REVB and REVQE compatible expansion port
7\Support Underglow RGB PCB
8\Supporting Split Spacebar(3u+3u)
9\Support Type-C port(If you order PCB only, we will ship with a Mini USB port, you need to solder it by your self, if your order contains plastic case, there will be a  hot-swapping USB Module at the case)

Now we can assemble it for you, pls click this link to find more details:

https://kprepublic.com/collections/assembly-service/products/assembly-cost-for-install-led-switches-solder-fee-cost-for-xd60-gh60-xd64-cospad-eepw84-80-100


How to flash XD87 and use kle or tkg?pls click this link:

How to Switch XD87's switch light effect
All Supporting Layout
